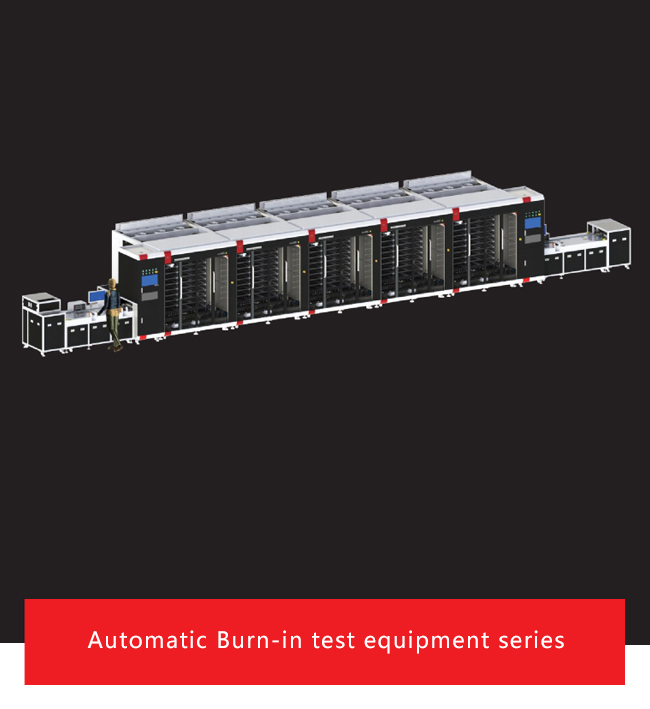

Automatic Burn-In Test Equipment High Power Adapter Mobile Phone
Charger Aging Test
Scope of application
LED power supply, new energy OBC, PC power supply, server power
supply, TV power supply, photovoltaic inverter, high-power
industrial power supply, etc.
Outstanding functions
1. Automatic operation mode, per hour capacity more than 1500 PCS.
2. Automatic operation mode,more stable and reliable.
3. Automatic high pressure test, ATE test, burn-in test.
4. Unit design, specific configuration can according to customer
needs.
5. Save labor, reduce labor intensity.
6. Integration testing, no need to turn over, improve degree of
automation.
7. Multiple test station, save space, real-time monitoring, has the
functions such as abnormal alarm stop.
8. Burn-in test interface independent, for your follow-up
maintenance,keep quality and save cost.
9. Load recovery efficiency up to 80%, reduce load electricity
heat, reduce the electrical waste.
10. Commonality use, DC products with or without wire are
applicable, the operation is simple and convenient,Using a large
number of manipulator or transfer machine to replace artificial,
high efficiency, for the expensive department, promote efficiency
of up to 50%.
Performance parameters
| Basic information Model | Equipment Model | CPET-AT3888S |
| Units Per Hour(UPH) | 1600PCS/H or 56PCS/H |
| Product Power | 5W~65W/CH or 1000W~3000W/CH |
| Equipment Size | L=13000MM,W=2000MM,H=2700MM |
| Equipment Weight | Around 3000kg |
Related Information
of Burn-in line | Burn-in Room Capacity | 3888PCS or 280PCS |
| Burn-in Time | 2H |
| Burn-in Ply Number | 9 floors |
| Transfer mode | Similar with the burn-in mode of tridimensional storage/manipulator
transportation/connector contact |
