    Customized Temperature Controlled Aging Test EC Fan Driver Module Aging Cabinet

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-EC01
    Price : 10000dollars/set
    Payment Terms : L/C
    Supply Ability : 30sets/month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

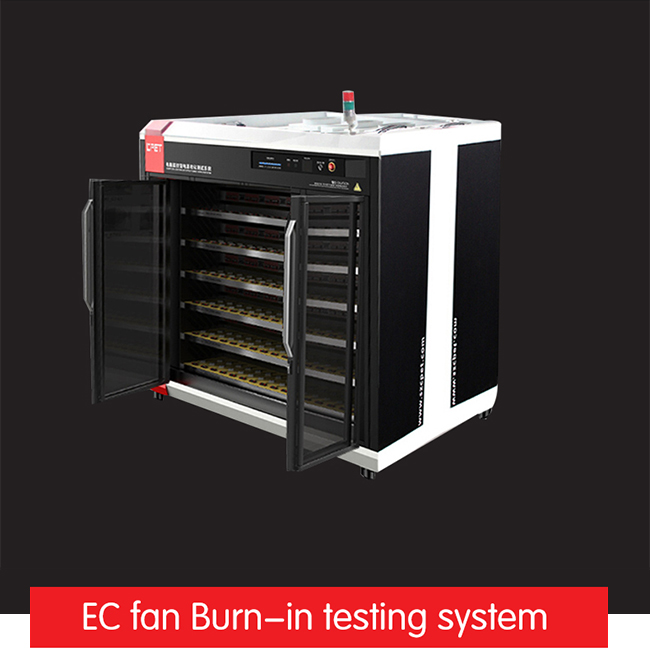

    Customized Temperature Controlled Aging Test EC Fan Driver Module Aging Cabinet


    Scope of application


    Mainly used in burn-in test of temperature-controlled EC fan drive module
    Performance parameters
    Skills requirementBurn-in cabinet size(mm)L2400*W1200*H1600
    Rated working voltage460Vac
    Rated insulation voltage690Vac
    Rated frequency50Hz
    Rated working current8.3A
    Power frequency withstand
    voltage for 1 minute
    2500Vac
    AC input specifications460Vac/8.3A
    AC output specifications364Vac/8.35Amax
    Master switch4way 100A
    Input switch24way 16A
    Output switch24way 16A
    IP ratingIP20
    Noise<70dB (measured at a distance of 1m from the device)
