    AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-DC05
    Price : 9100dollars/set
    Payment Terms : L/C
    Supply Ability : 25sets/month
    Delivery Time : 40 work days
    • Product Details
    • Company Profile

    AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment

    Ac Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
    Outstanding functions

    1. The system application of gb, the rules, the rules, tesla products field, power 1.8 KW / 3.5 KW / 3.6 KW / 7 KW, 11 KW / 22 KW


    2. The device supports multiple LOAD modes


    3. The device can maintain communication with the host computer


    4. Transfer cables are used between products; Product AC input/output are equipped with the corresponding acquisition module


    5. A variety of laminate structures can be selected in the product area to meet the needs of different products


    6. Ac parameter measurement module, can be set and adjusted not much input specifications


    7. Built-in automatic smoke alarm protection device


    8. After the failure of a single charging pile on the aging test bench, the continued testing of other charging piles will not be affected. When the monitoring platform detects that one or more charging piles are abnormal during the aging process, the system can automatically bypass the faulty charging piles and continue to test other charging piles (optional function)


    9. The equipment itself overcurrent protection, short circuit protection and overtemperature protection, the use of the environment: indoor temperature -10~+50 ℃

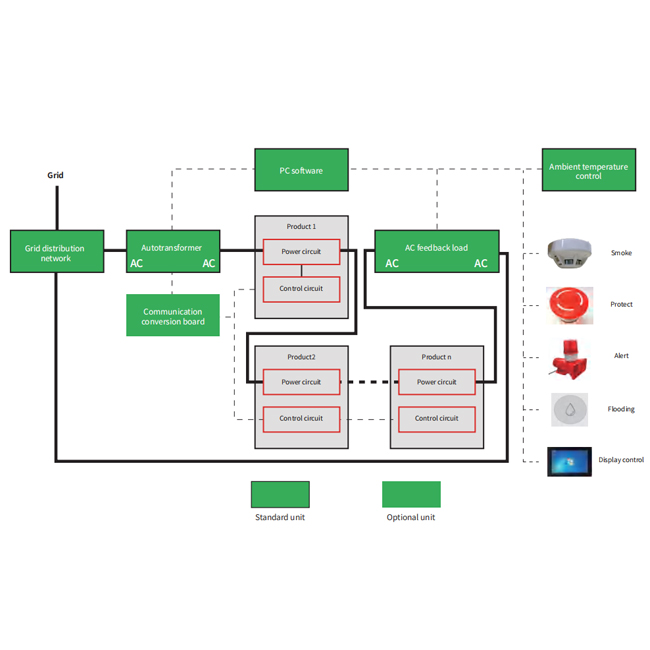

    Architecture diagram

    Performance parameters
    SystemSystem structure1 control cabinet + 2 burn-in cabinets + 4 trolleys
    Overall size3800*1800*1900mm
    Total floor area3800*2500mm(Including operation area)
    Total input voltageThree-phase five-wire system 220Vac (rated)
    Total input current32A
    Total input power18kW
    Application ambient temperature0-40℃
    Application environment humidity0-95%
    Fire protection requirementsMaterials meet UL 94V0 rating
    Environmental requirementsMaterials comply with Rohs, WEEE requirements
    Safety requirementsComply with IEC62368 international standard design requirements
    Burn-in cabinetBurn-in bits/cabinet18 bits/cabinet
    Burn-in bits/surface9 bits/surface
    Burn-in bits/layer3 bits/layer
    Burn-in product power7.5kW (single-phase)/bit, 21kW (three-phase)/bit
    Burn-in product input voltage220Vac (single phase)/380Vac (three phase)
    Burn-in product input current32A/bit
    Burn-in Product Load Category7kW (single-phase)/bit, 19.5kW (three-phase)/bit
    Burn-in product load current220Vac (single phase)/380Vac (three phase)
    Auxiliary voltage of Burn-in products32A/bit
    Auxiliary current of Burn-in productsUniversal plug (L1/ L2/ L3/N/PE)
    Power Connector TypeGB AC charging interface (L1/ L2/ L3/N/PE)
    Signal Connector TypeRJ45
    Input power21kW
    Feedback power19.5kW
    Constant temperature rangeRoom temperature
