    TV Panel Computer Monitor Display Screen Power Aging Test Rack Manufacturer

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-501202
    Price : 7800dollars/set
    Payment Terms : L/C
    Supply Ability : 30sets/month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    TV Panel Computer Monitor Display Screen Power Aging Test Rack Manufacturer

    TV Panel Computer Monitor Display Screen Power Aging Test Rack Manufacturer

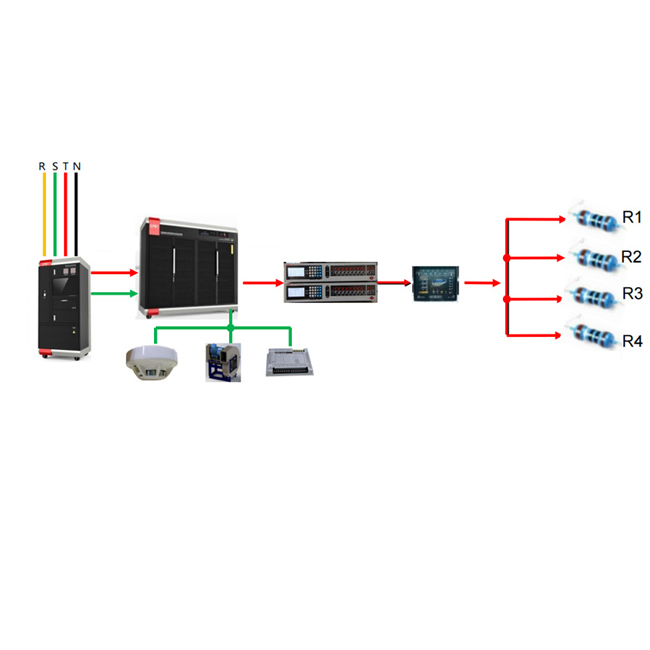

    System architecture

    Performance parameters

    1Introduction to the appearance and structure of the power aging trolley:
    ACar size (mm) :L2050*W880*H1900
    BNumber of car layers:6
    CHeight of truck:170mm
    DTruck structure material:Cold-rolled sheet
    ELoad area heat dissipation mode:Top turbine exhaust fan up-row (easy ring temperature control)
    FInterlayer insulation and anti-static mode:Epoxy insulating board with heat dissipation holes on the surface
    GTruck structure form:The product area is isolated from the load area, and the top of the cabinet is provided with an air vent
    HAluminum alloy visual sliding door structure:Product area closed, folding glass door
    IOthers:Lighting is installed on each floor of the product area of aging cabinet for easy operation
    2The configuration of the electronic load module, the power of the measured power supply and the aging quantity are introduced
    AElectronic load module control mode:RS485 communication mode, host computer RS232 communication mode
    BProgrammed power supply:Each layer is configured with 1 programmable power supply: 0-36V/1800W,10A/ bit
    CNumber of programmed power supplies installed:The whole vehicle is equipped with 6 programmed power supplies, which can supply power to 30PCS products
    3Electric control and temperature control device of power aging trolley:
    AConnection mode:AC input with small speaker clip, 16-pin power plug connection cable (customer supply), DC input: audio input 3.5*1.5 female base
    BPanel function keys:Input AC voltage display, start switch, emergency stop switch
    CProduct area temperature control accuracy:The product area is closed, with folding glass doors, temperature control range: room temperature to 70℃±5℃
    DProduct area temperature control principle:Low temperature heating, over temperature exhaust
    ETrolley power distribution and control mode:380V three-phase five-wire distribution; Computer monitoring and manual electrical control
    FTrolley power distribution:1800W*6 sets /0.8≒18KW, the measured power efficiency is calculated at 80%
    GControl mode:Electric control includes manual/automatic switching, which is monitored by the computer in real time when aging
    HSecurity protection:Equipment grounding protection, leakage switch protection, smoke alarm automatic power off protection, etc
