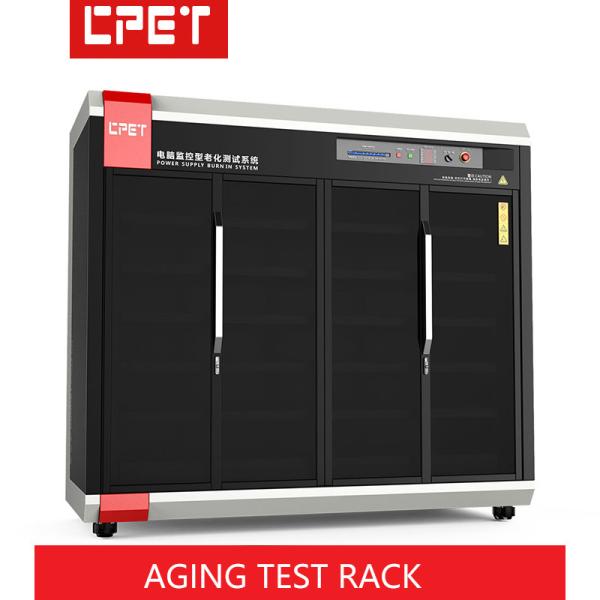

    High Power Energy Saving Electronic Load Inverter Aging Test Rack

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-NBQ828
    Price : 8650dollars/set
    Payment Terms : L/C
    Supply Ability : 30sets/month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    High Power Energy Saving Electronic Load Inverter Aging Test Rack

    High-Power Energy-Saving Electronic Load Inverter Aging Test Rack


    Performance parameters
    Burn-in cabinet
    structure and
    Burn-in quantity
    planning
    Trolley size (mm)L2050*W1250*H2050mm (size of a single Burn-in cabinet)
    Number of trolley layers6 layers, product area depth 400mm, (6 Burn-in positions per layer)
    Trolley height175mm
    Trolley structure material2.0mm thick cold rolled sheet
    Load area cooling methodTop turbine exhaust fan top row type (easy to control the ambient temperature)
    Layer insulation and anti-static methodEpoxy insulation board with heat dissipation holes on the surface
    Overall burn-in room structureAdopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
    Introduction to energy
    recovery module
    configuration, power of the tested power
    supply and Burn-in quant
    Energy recovery module control methodRS485 communication mode, upper computer uses RS232 communication mode
    Product burn-in modeThe burn-in process of the product is carried out by the way of relative drag
    Dc power isolation modeDc power channel adopts photoelectric isolation (communication and power supply isolation)
    Energy recovery module design
    architecture
    No relay, long life design scheme (independent intellectual property rights)
    Introduction to the
    main functions of
    the system
    Applicable to energy storage power,current converter, inverter, regurgitator,transverter, medical power supply and so on
    Free configuration of self-developed special monitoring software for power Burn-in, with independent intellectual property rights and no legal risks
    Use programmable electronic load module to monitor output terminal voltage, current and power parameters
    Dedicated monitoring software for Burn-in enjoys free final upgrade service, powerful expansion function, saving repeated investment in equipment
    Burn-in parameters, time setting, ON/OFF sequence editing (test of the product being tested on and off), support for automatic voltage switching, load
    conversion and other functions can be programmed (Burn-in parameters can be automatically switched in a fixed time period)
    The function of automatically turning off the power at the end of the Burn-in of the tested power supply is convenient for unattended
    The computer automatically displays the quality of the tested power supply product, and multiple windows in the window are convenient for centralized
    management, which saves operators and improves production efficiency
    The computer can store the Burn-in data report of the tested power supply, the process parameters of the tested power supply are easy to trace
    RS232 to RS485 adopts photoelectric isolation converter to improve communication reliability and prevent lightning damage to equipment
    Each computer can monitor 18 devices at the same time, (each serial port can connect to 63 slaves, and each computer supports up to 18 serial ports)
    The power Burn-in monitoring software has a built-in help file, which is convenient for solving operation questions immediately
