    Travel Multi Port Seat Mobile Phone Charger Plug Micro USB Burn In Test Equipment

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-300804
    Price : 7600dollars/set
    Payment Terms : L/C
    Supply Ability : 30sets/month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

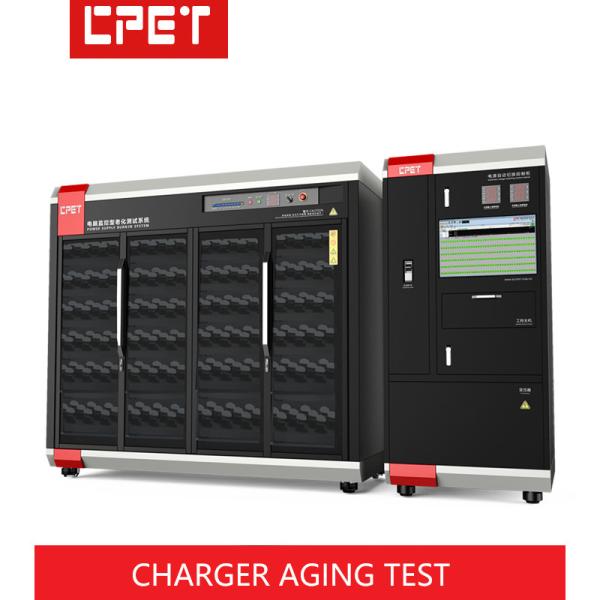

    Travel Multi Port Seat Mobile Phone Charger Plug Micro USB Burn In Test Equipment

    Travel Multi-Port Seat Mobile Phone Charger Plug Micro-USB Burn-In Test Equipment




    Application Scope


    Power sources such as chargers, power adapters, electric bicycle battery charger,wireless charging, power tool charger,sweeper charger,etc.

    Performance parameters
    1Introduction to the appearance and structure of the power aging trolley:
    ACar size (mm) :L2050*W880*H1900
    BNumber of car layers:6
    CHeight of truck:170mm
    DCar structure materialThick, cold rolled sheet
    ELoad area heat dissipation mode:Top turbine exhaust fan up-row (easy ring temperature control)
    FInterlayer insulation and anti-static mode:Epoxy insulating board with heat dissipation holes on the surface
    GTruck structure form:The test area is isolated from the load area
    HAluminum alloy visual sliding door structure:Product enclosed, viewable folding glass door
    ICar structure type:

    The fourth layer and the fifth layer of the product placement area are flipped structures, and the bottom working space is large to facilitate the loading and unloading of products


    2Energy recovery module configuration, measured power and aging quantity introduction:
    AElectronic load module control mode:RS485 communication mode, host computer RS232 communication mode
    BMounting load module model:CP8102(1-500V,0.05-10A,100W/CH,)
    CElectronic load module isolation mode:

    Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)


    DNumber of installed load modules:

    CP8102 load 10 units on each floor, a total of 6 layers, 60 units installed on the whole vehicle


    EEnergy-intensive load loading mode:In CC mode, channels can be connected in parallel
    FElectronic load design architecture:

    No electrolytic capacitor, no relay, long life design scheme (independent intellectual property rights)


    GNumber of electronic load module channels:4CH
    HSingle pass rated power of load module:

    100W/CH The power of the measured single-channel power supply is less than 100W


    INumber of vehicle aging products:Products with output power below 100W can be aged 240 bits
    JNumber of parallel dual-channel aging products:

    Product output power below 200W products can be aged 120 sets (only CC mode can be parallel)
