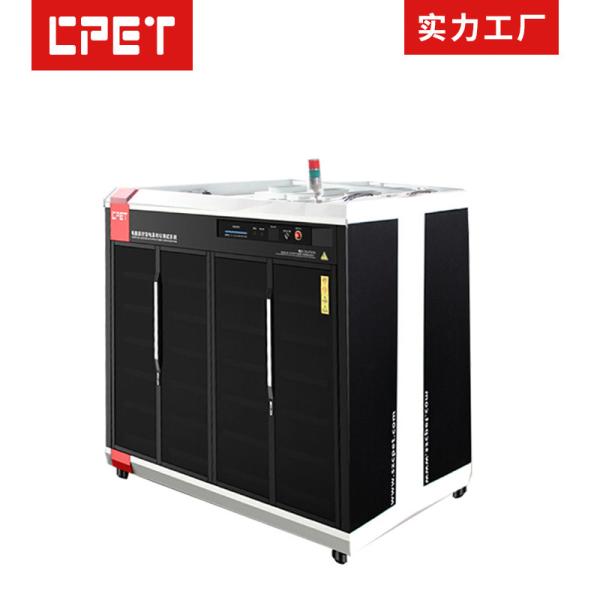

65W Outdoor Portable Mobile Power Aging Equipment Manufacturer's Customization

1. Software sets load parameters, real-time monitoring of voltage, current, power and other

parameters

2. It can monitor the charging status of mobile power, such as charging voltage, current and

power

3. CC, CV load mode

4. Channels can be connected in parallel under CC load mode to meet product power

expansion

5. Built-in over-temperature and smoke alarm automatic protection

6. Editable switching timing, load conversion function

7. Use with power burn-in monitoring software

8. A variety of DC adapter board interface can meet the needs of different output interface

products

9. Multiple laminate structure options in the product area to meet different products more

convenient operation

10. AC parameter measurement module, test power input characteristics (optional)

Performance parameters

Model	CP-3011	CP-3012	CP-3013
Power of single channel	65W/CH	65W/CH	65W/CH
Quantity of load channels	192CH	240CH	384CH
Scope of load voltage	2-100V	2-100V	2-100V
Scope of load current	0.05-5A/CH	0.05-5A/CH	0.05-5A/CH
Load precision	0.05-5A/CH	±(1%+0.1%FS)	0.05-5A/CH
Charge and discharge mode	NO	NO	NO
Load Mode	CC+CV Mode	CC+CV Mode	CC+CV Mode
Number for plies of product zone	Single side	Single side	Single side
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 340
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
Customizable fast charge function	QC, PO, FCP, SCP, PPS, etc.
External dimension	2050*880*1900/custom design
