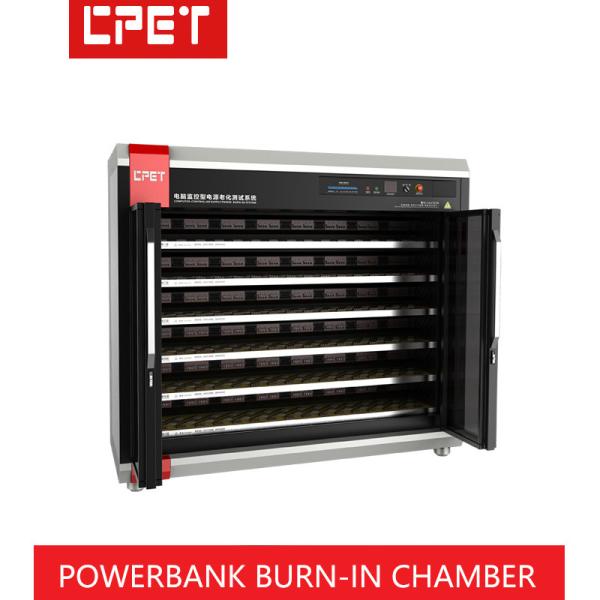

Automatic Portable Fast Charge Mobile Power Charger Aging Car Manufacturer

Performance parameters

1	Introduction to the appearance structure of the aging trolley:
A	Car size (mm) :	L2050*W880*H1900
B	Number of car layers:	6 floors
C	Height of truck:	170mm
D	Truck structure material:	Cold-rolled sheet
E	Load area heat dissipation mode:	Top turbine exhaust fan up-row (easy ring temperature control)
F	Interlayer insulation and anti-static mode:	Epoxy insulating board with heat dissipation holes on the surface
G	Truck structure form:	The test area is isolated from the load area
H	Aluminum alloy visual sliding door structure:	Product enclosed, viewable folding glass door
I	Car structure type:	The fourth layer and the fifth layer of the product placement area are flipped structures, and the bottom working space is large to facilitate the loading and unloading of products
2	Module configuration, measured power and aging quantity:
A	Electronic load module control mode:	RS485 communication mode, host computer RS232 communication mode
B	Mounting load module model:	CP2127(2-30V/0.2-5A/100W,) (specifications are detailed in the description), with PA220D12161 bidirectional ACDC module
C	Electronic load module isolation mode:	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
D	Number of installed load modules:	Install 24 CP2127 charging and discharging modules and 12 PA220D12161 bidirectional ACDC modules on each floor
E	Energy-intensive load loading mode:	In CC mode, channels can be connected in parallel
F	Electronic load design architecture:	No electrolytic capacitor, no relay, long life design scheme
G	Number of electronic load module channels:	8CH (8 channels)
H	Single pass rated power of load module:	100W/CH The power of the measured single-channel power supply is less than 100W
I	Number of vehicle aging products:	Products with output power below 100W can be aged 192 bits

CPET focuses on the research and development, manufacturing, sales and service of power electronic products such as power aging test, battery energy storage test, automatic aging test equipment, and intelligent monitoring software. Widely used in network communication, LED driven lighting, industrial electronics, battery energy storage, charging pile, automotive electronics and other new energy fields, more than 3,000 partners worldwide, is the industry model of intelligent manufacturing system service provider.

CPET always takes technological innovation as the source of development, we attach great importance to the investment in research and development, and has obtained more than 50 invention patents and software Copyrights, and won the Shenzhen double software enterprise, Shenzhen excellent software enterprise, Shenzhen high-tech enterprise, national high-tech enterprise, Shenzhen small and medium-sized minimally invasive new enterprise and other awards.

CPET has served thousands of customers around the world, such as Philips, Samsung, Panasonic, Vision Source, Lexus, Mitsuo Aurora, Zhaochi, Maoso, BYD, Trimble, Lite-on, Flextronics, Infective, Mingzhi, Huawei and other well-known enterprises,CPET has enjoyed a high brand awareness and reputation in the domestic and foreign markets.

Now CPET continues to succeed in product innovation, but CPET people have never stopped the pace of progress, customer-centric we continue to pursue better technology, quality, service. Value is the business philosophy. Let's witness the creation of China together.
