    High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CPET-ME50640T
    Certification : CE,ROHS
    Price : 48000
    Payment Terms : T/T
    Supply Ability : 2 sets /month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

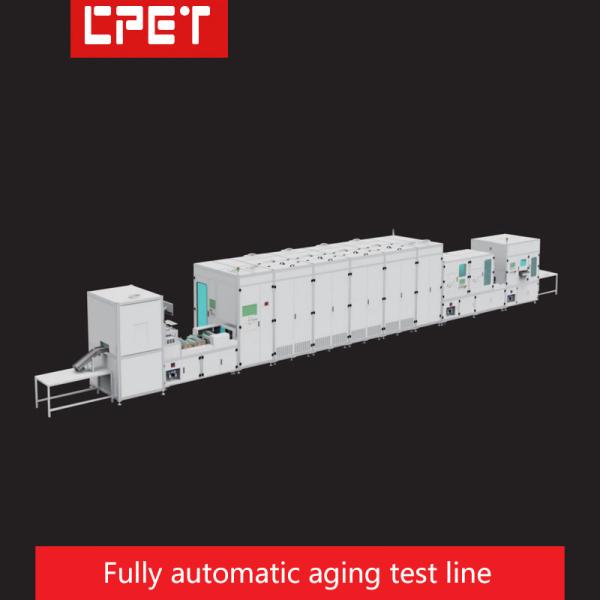

    High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line

    High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line

    Scope of application

    High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line

    Adapter power supply LED power supply, new energy OBC, PC power supply, server power
    supply, TV power supply, photovoltaic inverter, high-power industrial power supply, etc


    Outstanding functions

    High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line

    1. Fully automatic operation

    2. More stable and reliable

    3. Automatic high pressure test, ATE test, burn-in test

    4. Save labor, reduce labor intensity

    5. Integration testing no need to turn over, improve degree of automation

    6. Multiple test station, save space, real-time monitoring, has the functions such as
    abnormal alarm stop

    7. Burn-in test interface independent, for your follow-up maintenance,keep quality and
    save cost

    8. Powerful versatility, DC products with or without wires can be applied, and the operation
    is simple and convenient


    Performance parameters

    High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line

    Basic information of the equipmentEquipment modelCPET-ME50640T
    Average output(UPH)1200PCS/h
    Product power100W/CH
    Equipment sizeL=16500mm,W=2200mm,H=2600mm
    Equipment weight5900KG
    Information related to aging linesCapacity of the aging room2880PCS
    Aging time2H
    Number of aging layers10
    Transplanting methodModular splicing mechanical hand handling
    Aging line temperature control systemCooling circulation modeAir cooling: fan + frequency converter + air duct
    Control range and accuracyTemperature control range: Adjustable from room temperature to 60℃, with a control accuracy of ±5℃
    Heating rateIt can rise above 45°C within 20 minutes
    Electrical control system for aging linesProduct and load characteristicsOptional
    Load characteristicsOptional
    Input aging voltageIt can support up to six voltages at most
    Protection and alarmThe independent control power supply is equipped with fuses, overheat and overload protection switches, leakage protection switches, warning lights, emergency switches and other devices
    Description of hardware requirementsIndependent computer host, display aging status, monitor output voltage, current and power, etc
    Software monitoring requirementsDifferent aging programs are written for different products to achieve parameters such as voltage switching, impact, switch cycles, current setting, and temperature setting
    Aging management requirementsThe OK and NG judgment monitoring interface directly shows that the data can be saved in the required data format (TXT, EXCEL), which is convenient for query and download
    Information related to the test stationTest procedureProduct loading + initial power-on test + high voltage +ATE+ aging +ATE+ product retrieval, automatic aging test system, unit combination system
    Test methodOptional
    Test data processingOptional
    Testing instrumentOptional
    Connection methodOptional
    Aging & Testing fixturesFixture sizeW280mm*D600mm*H110
    Interface modeAC: Universal socket DC:USB or regular DC female socket or custom
    universalityShared aging test
    Weight1.5KG
    Main electrical control systemProtective deviceIt is equipped with separate and segmented main switches, as well as independent grounding protection and leakage protection devices
    Electricity demandAccording to the actual plan
    Gas source demand0.5-0.8MPa
