    UPS Uninterruptible Power Supply Aging Test Cabinet Manufacturer

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-UPS4001
    Certification : CE,ROHS
    Price : 7200 dollar/set
    Payment Terms : T/T
    Supply Ability : 30 sets/month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    UPS Uninterruptible Power Supply Aging Test Cabinet Manufacturer

    UPS Uninterruptible Power Supply Aging Test Cabinet Manufacturer


    Performance parameters

    UPS Uninterruptible Power Supply Aging Test Cabinet Manufacturer

    CategoryProjectContent
    SystemSystem architectureOne control cabinet + two load cabinets
    Total volume dimension4980*880*2050mm
    Total land area4980*1800mm(Including the operation area)
    Total input voltageThree-phase five-wire 380Vac (rated)
    Total input current130A*2
    Total input power66kW*2
    Application ambient temperature0-40℃
    Application environment humidity0-95%
    Fire protection requirementsThe material complies with UL 94V0 grade
    Environmental protection requirementsThe materials comply with Rohs and WEEE requirements
    Safety requirements

    It complies with the design requirements of the IEC62368international standard

    Power cabinetNumber of units/cabinets8 bits per cabinet
    Input power of aged products6.6kW/bit
    Input voltage of aged products220Vac/single phase
    Input current of aged products32A/bit
    Output power of aged products6kW/bit
    Output voltage of aged products220Vac
    Output current of aged products30A/bit
    Type of AC connectorAnderson 50A
    Signal connector typeRJ45(net opening)
    Input power53kW
    Feedback power42kW
    Volume dimension2050*800*2050mm
    Air duct direction in the product areaForward wind, upward wind
    Heat dissipation methodAir-cooled
    MaterialCold-rolled sheet
    Monitoring softwareDisplay operation information

    Input voltage, current, power, output voltage

    (load module communication or product communication)

    Display status information

    Notconnected/Emptyposition/Qualified/Undervoltage/

    undercurrent/Overvoltage/Overcurrent/No output/protection

    Display accuracy±(1%+0.2%FS)
    Control accuracy±(1%+0.2%FS)
    Poor alarm modeSound and light alarm
    Report formatCSV format
    Statistical informationYield rate /CPK/ time distribution
    MES connectionSupport
    Scanning speed5S
    Control cabinetOutput power of aged products5kW
    Control systemWindow 10
    Display mediumComputers and monitors
    Control mediumMouse, keyboard
    Communication methodNetwork cable
    Protection typeOvercurrent, leakage, over-temperature, smoke detection, emergency stop
    Alarm modeSound and light alarm, remote network
    Heat dissipation typeAir-cooled
    Maintenance modePost-maintenance
    Volume dimension880*860*2050mm

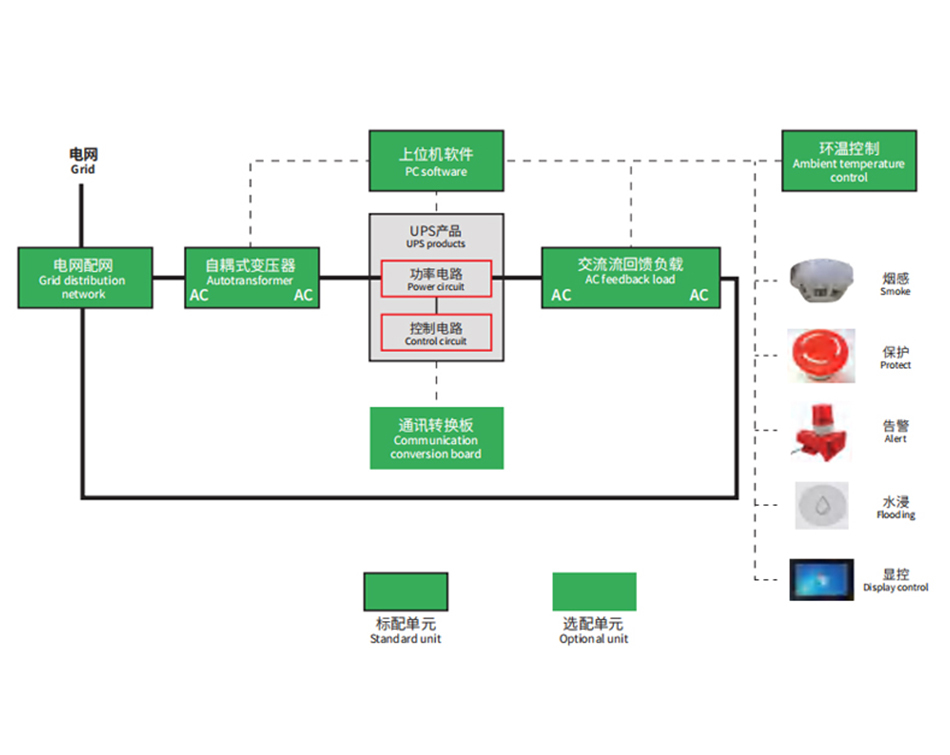

    Architecture diagram

    UPS Uninterruptible Power Supply Aging Test Cabinet Manufacturer
