Fully Automatic Intelligent Manufacturing Electronic Product Testing System

Ask Lasest Price
Brand Name :	CPET
Model Number :	CPET-ME4800020T
Certification :	CE,ROHS
Price :	42000
Payment Terms :	T/T
Supply Ability :	2 sets/ month
Delivery Time :	60 work days

Add to Cart

Product Details
Company Profile

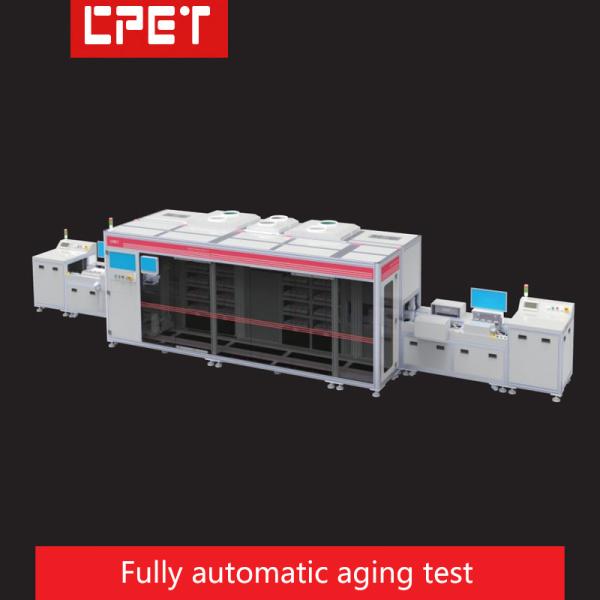

Fully Automatic Intelligent Manufacturing Electronic Product Testing System

Fully Automatic Intelligent Manufacturing Electronic Product Testing System

Scope of application

LED power supplies, new energy OBC, PC power supplies, server power supplies, TV power

supplies, photovoltaic inverters, high-power industrial power supplies, etc

Outstanding functions

1. Fully automatic operation

2. More stable and reliable

3. Automatic high pressure test, ATE test, burn-in test

4. Unit design, specific configuration can according to customer needs

5. Save labor, reduce labor intensity

6. integration testing no need to turn over, improve degree of automation

7. Multiple test station, save space, real-time monitoring, has the functions such as abnormal

alarm stop

8. Burn-in test interface independent, for your follow-up maintenance,keep quality and save cost

9. Load recovery efficiency up to 80%6, reduce load electricity heat, reduce the electrical waste

10. Powerful versatility, DC products with or without wires can be applied, and the operation is

simple and convenient

11. Use a large number of robots or transfer machines to replace labor, with high efficiency,

increasing your company's production efficiency by up to 50%

Performance parameters

Basic information of the equipment	Equipment model	CPET-ME4800020T
	Average output(UPH)	200PCS/h
	Product power	5W～65W/CH或1000W～3000W/CH
	Equipment size	L=8800mm,W=1800mm,H=1950mm
	Equipment weight	2600KG
Information related to aging lines	Capacity of the aging room	80PCS
	Aging time	1H
	Number of aging layers	5
	Transplanting method	Modular splicing mechanical hand handling
Aging line temperature control system	Cooling circulation mode	Air cooling: fan + frequency converter + air duct
	Control range and accuracy	Temperature control range: Adjustable from room temperature to 60℃, with a control accuracy of ±5℃
	Heating rate	It can rise above 45°C within 20 minutes
Electrical control system for aging lines	Product and load characteristics	Optional
	Load characteristics	Optional
	Input aging voltage	It can support up to six voltages at most
	Protection and alarm	The independent control power supply is equipped with fuses, overheat and overload protection switches, leakage protection switches, warning lights, emergency switches and other devices
	Description of hardware requirements	Independent computer host, display aging status, monitor output voltage, current and power, etc
	Software monitoring requirements	Different aging programs are written for different products to achieve parameters such as voltage switching, impact, switch cycles, current setting, and temperature setting
	Aging management requirements	The OK and NG judgment monitoring interface directly shows that the data can be saved in the required data format (TXT, EXCEL), which is convenient for query and download
Information related to the test station	Test procedure	Product loading + initial power-on test + high voltage +ATE+ aging +ATE+ product retrieval, automatic aging test system, unit combination system
	Test method	Optional
	Test data processing	Optional
	Testing instrument	Optional
	Connection method	Optional
Aging & Testing fixtures	Fixture size	W390mmD470mmH100
	Interface mode	AC: Universal socket DC:USB or regular DC female socket or custom
	universality	Shared aging test
	Weight	6KG
Main electrical control system	Protective device	It is equipped with separate and segmented main switches, as well as independent grounding protection and leakage protection devices
	Electricity demand	According to the actual plan
	Gas source demand	0.5-0.8MPa
